Related resources

Storybook:

• Section Frame

AEM components:

• Awaiting delivery

AEM status:

Unavailable

Examples

LMDI

Marketing

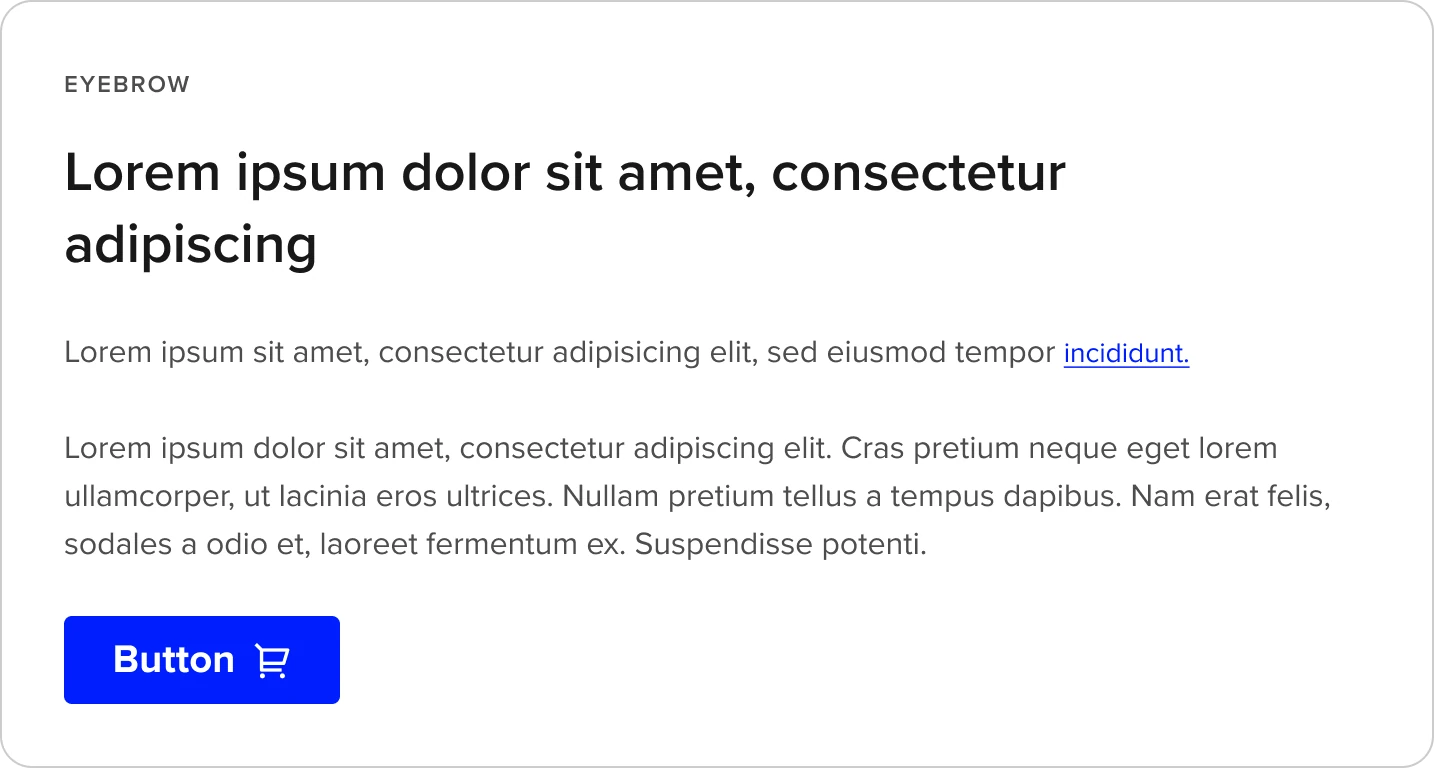

2/3 standard section frame wih Section header, Rich text grid

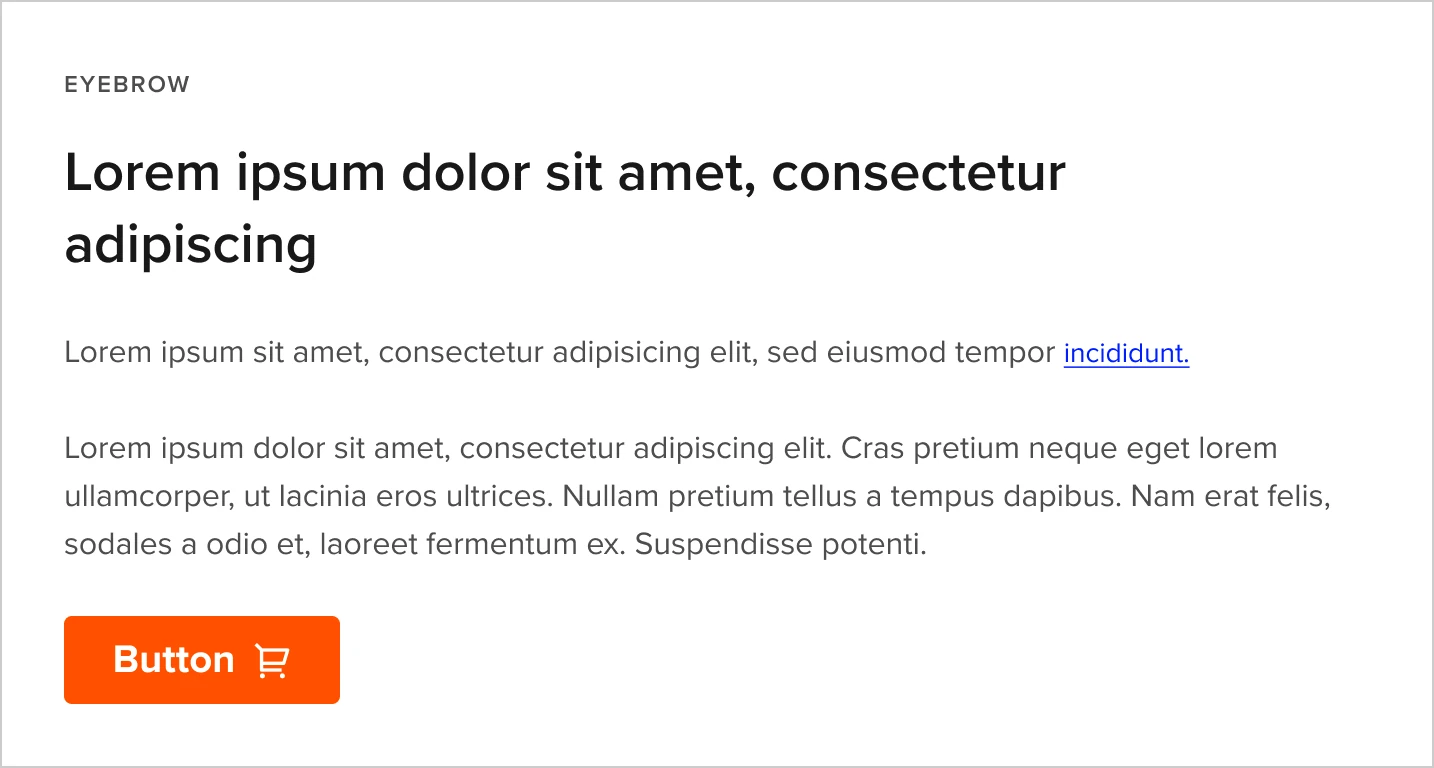

2/3 Dismisible section frame with small heading, badge group, Body copy, and Multiple CTA in the footer

2/3 Standard section frame with heading 3, badge group, corner asset (favorite), Body copy, and Multiple CTA in the footer

Usage

Section frame is flexible frame into which a wide range of components can be placed. The frame is a light grey background that is contained to the content area of a section or sub-section (i.e. a column section of any width inside of a section such as in Column Control). Section frame can support 1 to many components and there is also a variant this dismissible.

How to use

Body content

• Ensure the heading size and semantic level is appropriate to location of the framed content in the overall page hierarchy.
• When used as a Page Header the Heading Style should always be Heading 2 and the Semantic Heading level should be H1

Variants and Properties

Caption for table

Property name	Property type	Description	Values	Default value
Type	Variants	Allows the user to choose the variant that best meets their content needs	Default Dismissible Image	Default
Shade	Variants	Allows for a grey background version separate from the white background defaullt	Default Grey	Default
Footer	Boolean	Includes a footer section that defaults to a Button Group	True False	False
Badge group	Boolean	When included a configurable badge group is included above the Header section	True False	False
Show corner asset	Boolean	Includes a configurable “icon” option that includes multiple options for a communicative or interactive element in the top right corner of the frame	True False	False
Corner asset type	Variants	Includes options that can be included in the Corner Asset when enabled	Option menu Icon Interactive icon	Interactive icon

Although the Section Frame is very flexible in terms of the type and extent of content it supports, there are only three distinct variants of the component:

1. Default
2. Dismissible: for use in rare cases where the content inside the section frame is a temporary notification or instructions that the end user can dismiss and remove from the page
3. With image
4. Each of these variants is also available in a “grey” shade which is a separate property

Assets

Section Frame - Dismissible includes a “Close” icon closes/removes the frame when selected. The close icon has the following “Default” and “Hover” states.
